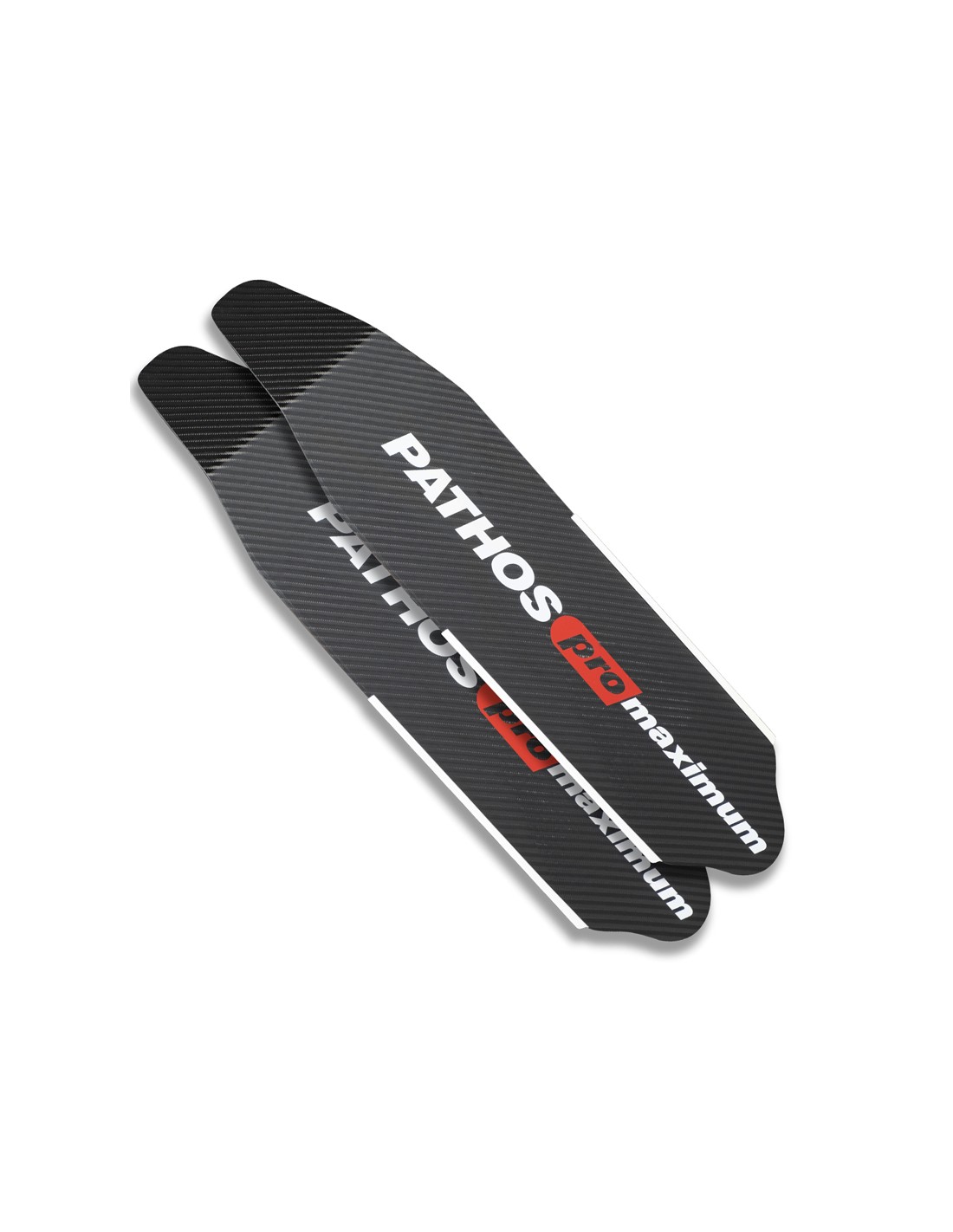

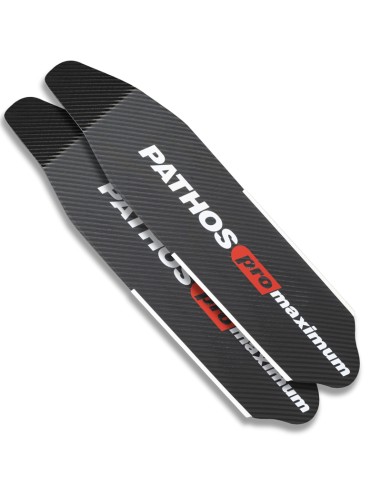

Blades Pathos Maximum Carbon

Blades Pathos Maximum Carbon

• All carbon blades can be installed with Pathos footpockets.
• PATHOS MAXIMUM Carbon blades are made of 285-T4 and 285-T2 pure Carbon Fiber.
• These fabrics are proven to be the best choice for our carbon blades due to the combination of high resistance and instant reaction.
• The selected carbon fibers combined with the best quality epoxy resin provide stiffness, reliability and long life.
• The 285-T4 4X4 carbon weaving style eliminates wrinkling, cracking and distortion of the blade and ensures complete resin soaking, while the inner 285-T2 2X2 weaving insures rapid recall.
• Each pair is processed thermally for 36 hours and cures at 8 tons pressure for 24 hours.
• This process gives the MAXIMUM carbon blades a gloss surface that minimizes water friction and a more reactive performance.
• The manufacturing process minimizes carbon fabric and epoxy resin disposal.
• MAXIMUM Carbon blades have an outstanding performance during deep dives due to the side water rails.
• These elastic spoilers operate as guides, creating a water channel that prevents the fins to drift on the sides and save diver’s precious energy.
• MAXIMUM Carbon blades have an outstanding performance during deep dives due to the side water rails.
• These elastic spoilers operate as guides, creating a water channel that prevents the fins to drift on the sides and save diver’s precious energy.
• MAXIMUM blades divert the power created by the diver’s movement all along their length. This is succeeded due to the carbon fabric’s inner arrangement.
• The special inner design gives the blades the ability of taking under pressure a full curved C-shape that provides the best flexibility, efficiency and functionality, while the return of the blade is instant.
• The best fins’ performance is achieved by increasing the blade’s angle, which also requires a well-trained diver who constantly exercises and keeps up his/her fitness.
• The 24o angle comforts every diver no matter his/her fitness condition and brings up the best of everyone.
• The MAXIMUM blades combined with PATHOS footpocket give more dynamic results.

TECHNICAL CHARACTERISTICS

• Material: CARBON FIBER FABRIC 285-T2 and CARBON FIBER FABRIC 285-T4.
• Areal weight: 285 g / m2.
• Weaving style: Twill 2X2 and Twill 4X4.
• Tensile strength (MPa): 3530.
• Tensile modulus (GPa):  230.
• Elongation at break (%): 1.5.
• LENGTH: 750mm/860mm.
• WIDTH: 193mm.
• ANGLE: 24°.
• WATER RAIL: Constant 15mm.
• HARDNESS: SOFT, MEDIUM, HARD.
• Made in Greece.
